BloodHound

ABOUT

BloodHound is a powerful security tool that uses graph theory to reveal the relationships between users, groups, and computers in a domain [LINK]. Also it have companion tool ShardHound [LINK].

INSTALL

I'm not SpecterOps, but for install guide you can look up here: [LINK]

Then just go it directory tool installed BH (in my situation it's /opt/Bloodhound)

Turn On

docker compose up

Turn Off

docker compose stop

Check how much memory BH takes

docker system df

USAGE

Access

After you composed, just go to http://127.0.0.1:8080/ui/login and use user admin and password which you should find at the first time boot up in output. Then change password ofc.

Collectors

You can't use BloodHound if you don't have Collector's (SharpHound or AzureHound, depends on what you hacking) output - specific programs which collect all data user permissions allow, and pack it in a bunch of json files in zip archive.

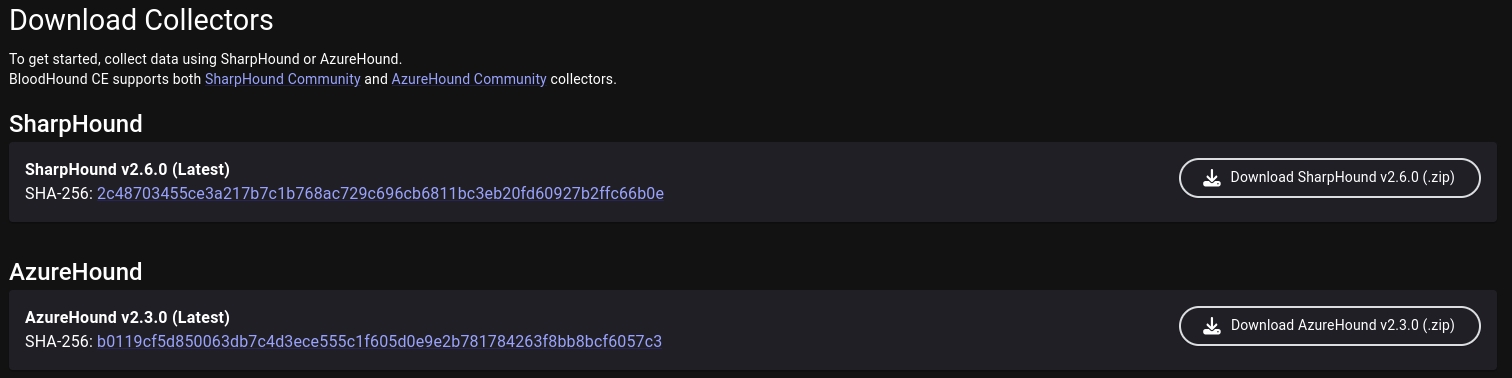

You can install the newest version of SharpHound in Download Collectors field.

Download Collectors Field

Then after you have SharpHound on your system, you should place it in targets system. How you would do it, it depends on you, but after SharpHound is inside, you can execute it with this command:

PS C:\> .\SharpHound.exe -c All --outputprefix 'SA1'

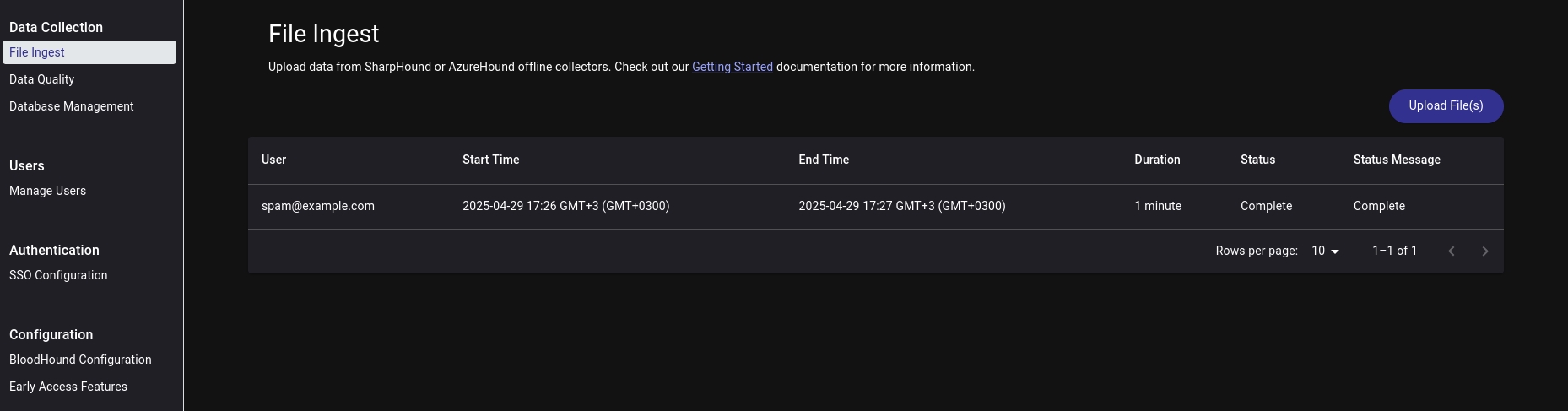

Then wait, and take your zip file back, and put it load it into BloodHound Session in Administration -> Data Collection -> File Ingestion.

If you want to just test tool, you can download example zip file here: [LINK]

File Ingest Field

Explore

So basically we have 3 fields: Search, Pathfinding, Cypher:

In Search, we can SEARCH for different objects in AD, like users, ou, gpo, etc. We can specify type with tags like

  • gpo:

  • user:

  • domain:

In Pathfinding (my favorite feature by now) you can make a path FROM -> TO objects. As example I will be using domain from my HTB Academy learning where we was needed to find path from wley to adunn:

So here we can see that if there is a chain of connections/accesses, it will automatically make a path.

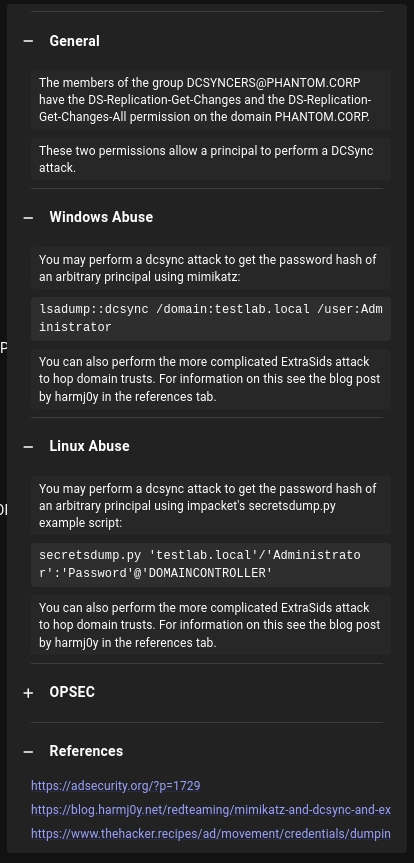

Also what is awesome, is that each Edge Label has more details and even references for more research and how you could abuse it from Linux or Windows, as example I will use DCSync label:

Label Details

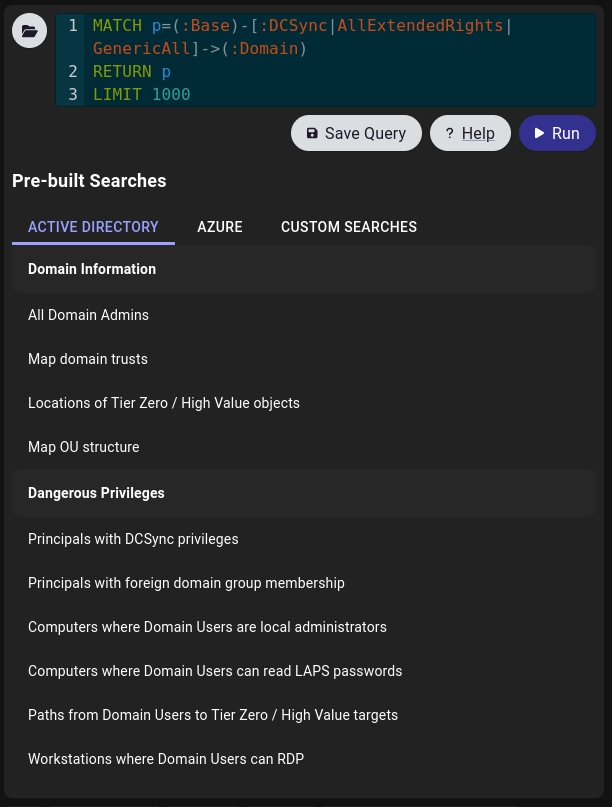

In Cypher we can use custom, or pre-built searches, which can make search for certain info easier.

Cypher

Group Management

In Group Management section we can check two Groups: Owned (skull logo) and High Value (diamond logo), environment and we can put a filters to check what, and how much of different objects we have, to later check them in Explore

Administration

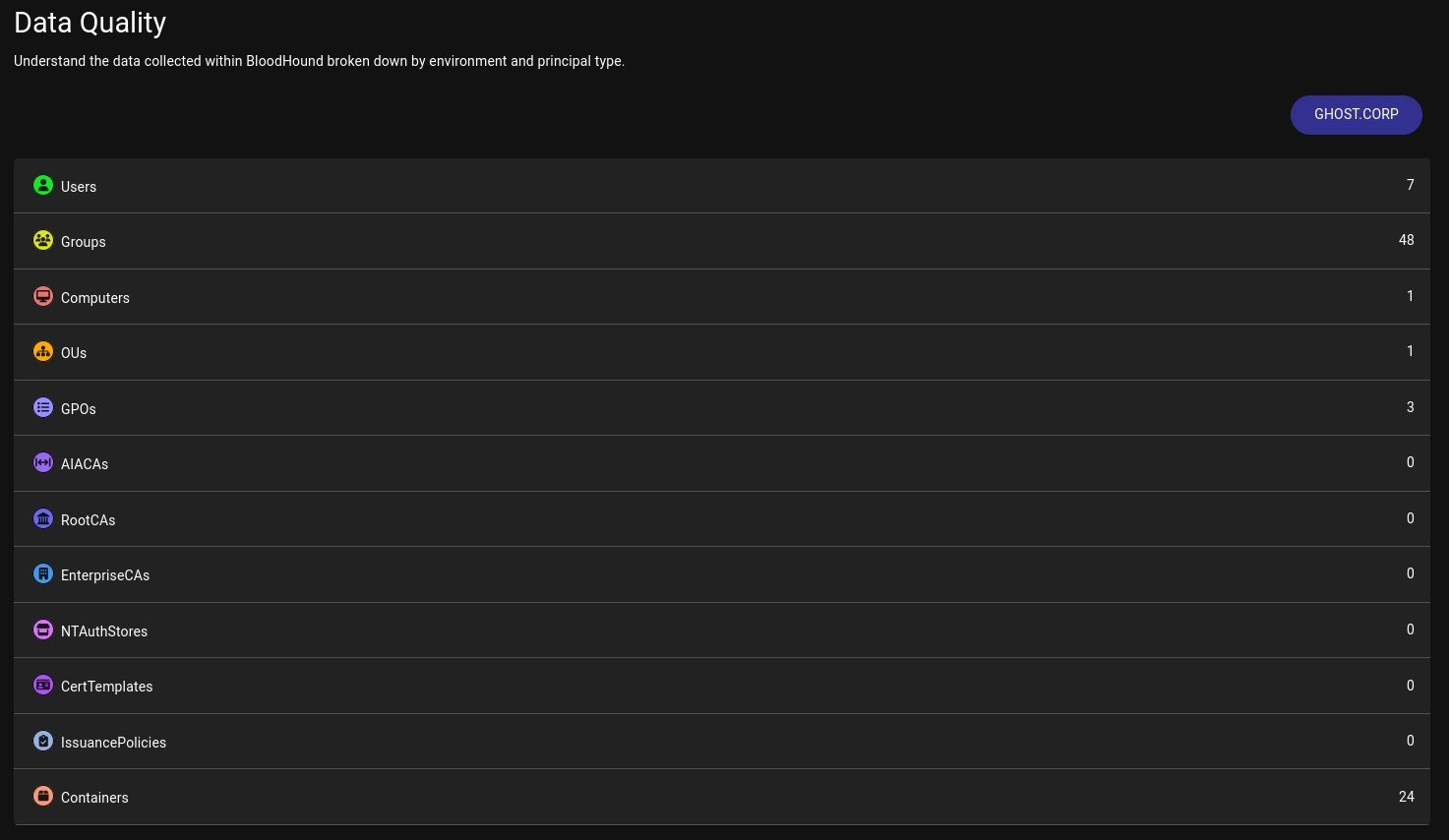

Except Ingest File section (where we uploaded our SharpHound output), we can use Data Quality, where we can see list of objects we have:

Data Quality

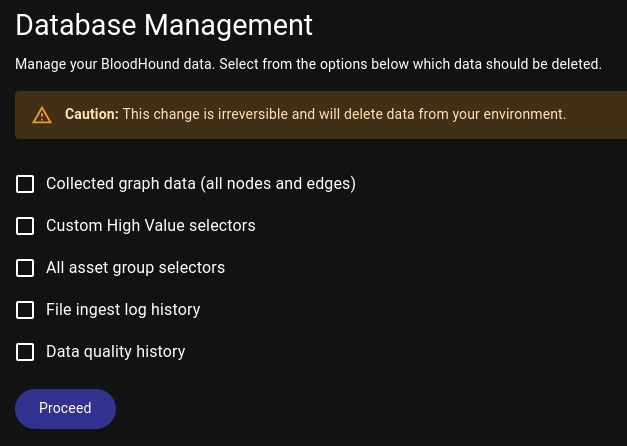

And also we can delete our data (because if we imported data in BH, it's not deleted, even if we are closing the BH session) in Database Management:

Database Management

INTERFACE

Labels

Yeah, we made a quick run on recon options, but there are also a few options which could customize our schemas, like Hide Labels, where there are two types of labels: Edge and Node Label where Node Label is label of AD Object, and Edge Label describing how nodes are connected with each other. Also with right click you can mark object as Owned (skull mark), if you pwned it.

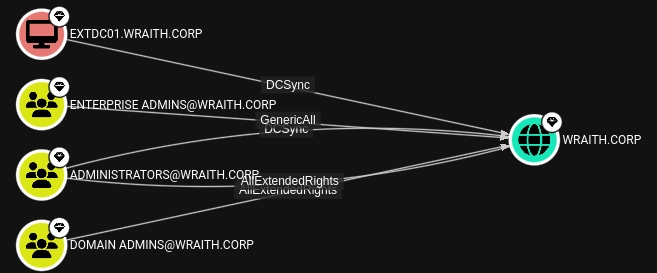

With both labels

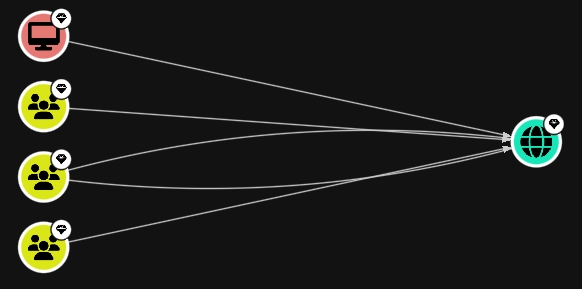

Without Labels

Layout

It's simple, there are two ways of layout: Standart and Sequential

Layout of nodes isn't fixed, and you can move nodes with mouse as you want.

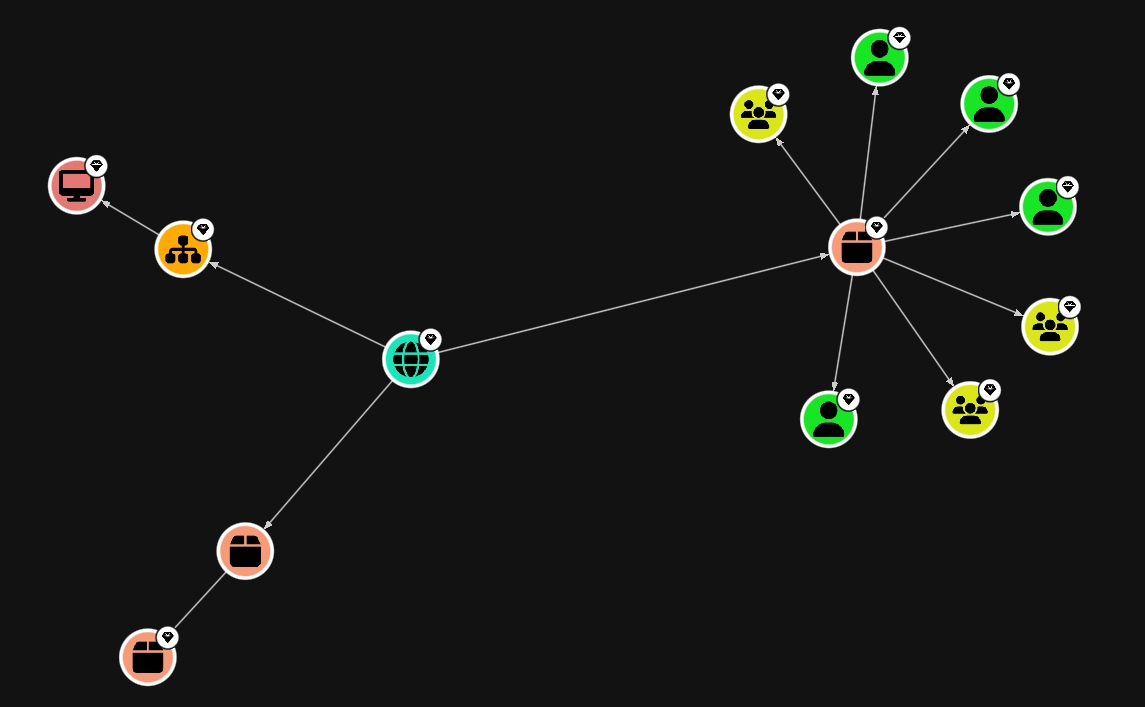

Standard

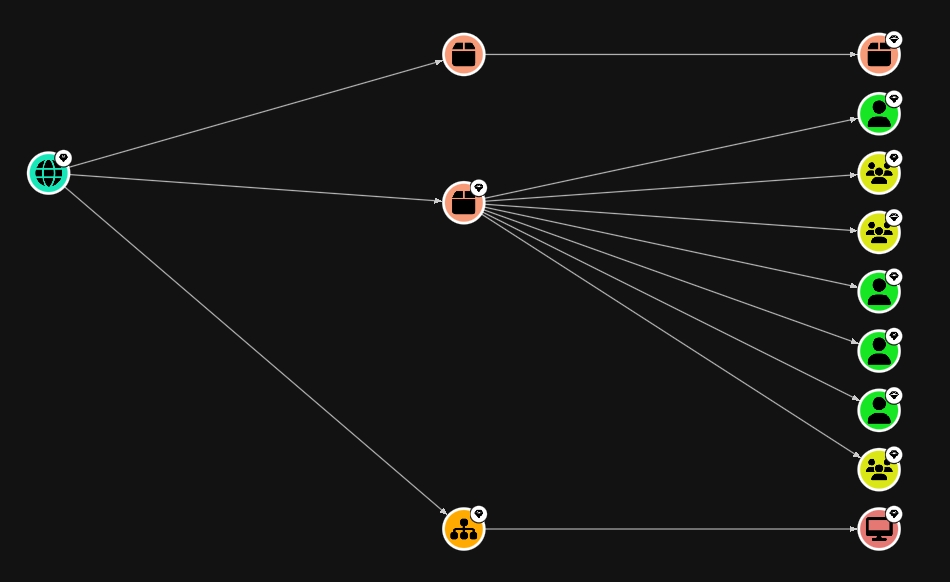

Sequential

Icons

As you seen, BloodHound has a bunch of icons, and I don't why, but I wanted to make a list of every icon and what it is (also design and color choices are PRETTY)

User
Users
Computer
Domain
Organizational Unit
GPO
Container
Certificate Template

CUSTOM QUERIES

Check WinRM Access

MATCH p1=shortestPath((u1:User)-[r1:MemberOf*1..]->(g1:Group)) MATCH p2=(u1)-[:CanPSRemote*1..]->(c:Computer) RETURN p2

Check SQL Admin Access

MATCH p1=shortestPath((u1:User)-[r1:MemberOf*1..]->(g1:Group)) MATCH p2=(u1)-[:SQLAdmin*1..]->(c:Computer) RETURN p2
